KINGKONG SY24

Detail

Main Technical Parameters

Model	KINGKONG SY24
Machining Area	1300x2500mm(optional 1500X2500mm/1600x3200mm/2000x3000mm)
Z axis Travel	200mm
Running Speed	50m/min
working sytle	Gantry movement transmission
Spindle Motor	9kw ATC spindle air cooling (0-24000rpm)
Tool Magazine	Double Carousel design(revolver tool-changer) with 24 tool holders
Control system	Taiwan SYNTEC 6MA controller
Driving System	Japanese Yaskawa servo motor and driving system Y=1800w,X=1300W,Z=2505
Guide Rail	Taiwan (30mm for Y axis and X axis and 25mm for Z axis)
Ball Screw	Taiwan TBI ball-screw for three axis transmission (Φ40 for Y axis ;Φ32 for X axis; Φ25 for Z axis)
Power Supply	AC380V/50~60HZ
Inverter	11kw inverter with good quality
Table	Vacuum table with pop-up
Pump	7.5kw air pump with high quality
Oil supply system	Automatic
Collet chuck	Φ6, Φ12.7
CNC/components Warranty	Spindle motor is for half a year, others for one year.

More details for this model machine as following:

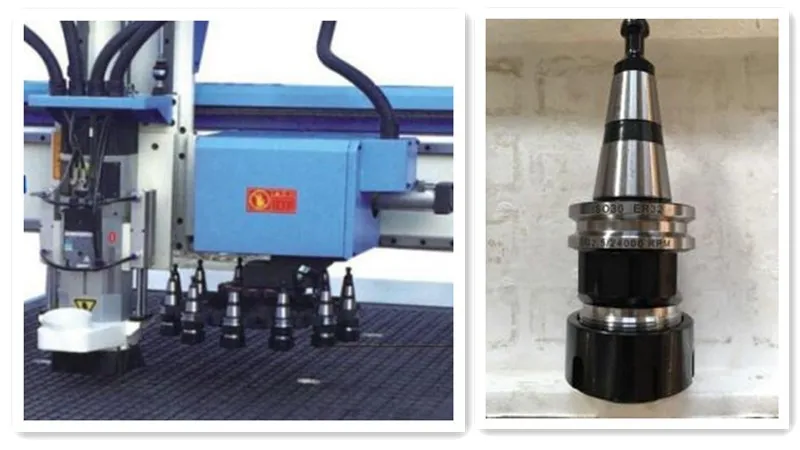

1. Double Carousel design with 24 tool holders type of ISO30, handle holder made by nylon with high quality material, so the handle structure, not only much strength, and also high flexibility. Work with spindle synchronization, real-time change tools automatic.

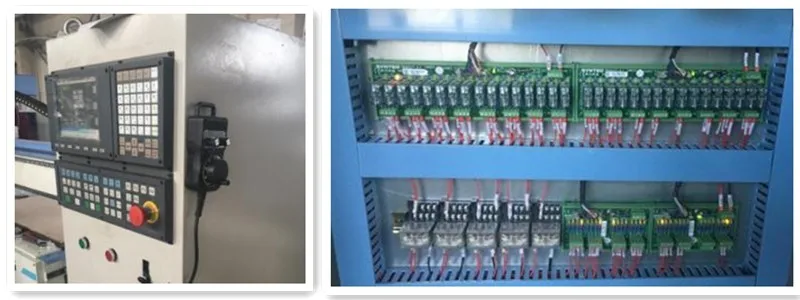

2.Taiwan SYNTEC 6MA control system which has a powerful numerical control with multitasking capability, interface with open humanized design. Big memory capacity, may directly output for processing, Do not need one side transmission and at same time processing. 1000w servo motor with heavy cutting power, has high precision and good anti-jamming capability, higher torque.

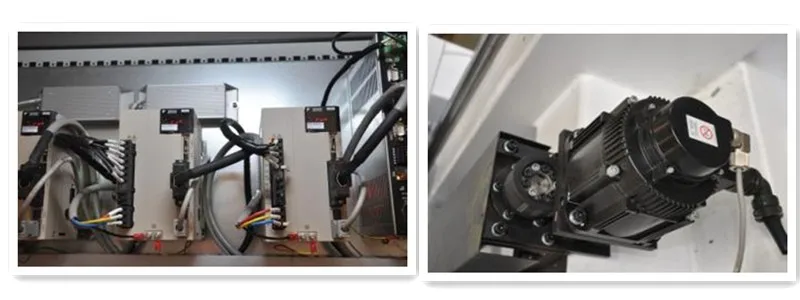

3.Japanese YASKAWA servo drives and motors, has high precision and good anti-jamming capability, higher torque, when making heavy cutting, the high performance of the servo motor can provide more powerful motivation, higher speed of plus or minus, so as to shorten the cycle time. High resolution encoder and digital closed-loop feedback to ensure the high precision positioning. It is the best choice for high-end model machine.

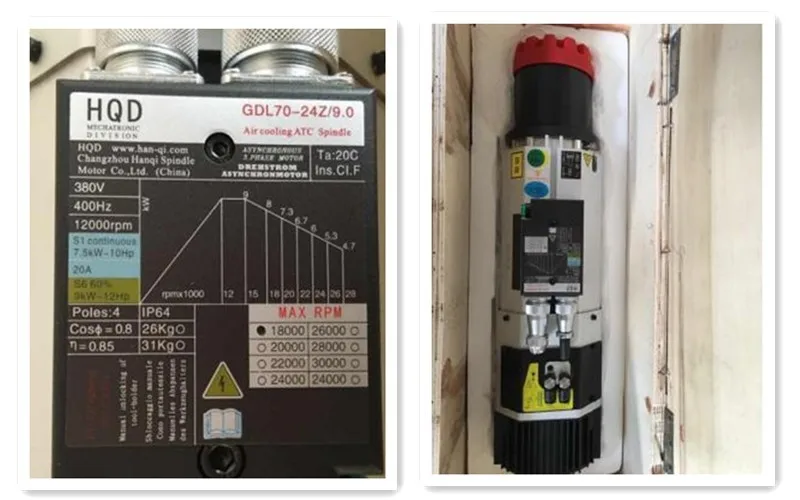

4.High quality 9KW air cooling spindle motor with Italy technical, high speed, low noise, waterproof and dustproof test. Its internal bearing the Eruope original heat resisting ceramic bearing, speed up to 24000 rpm/min. Spindle to install high flow, ultra-quiet fan and the fan to install a speed sensor is used to detect whether the cooling system to work normally.

5.Adopt high quality milling plate for Z axis, has good shock resistance, good wear resistance, good machinability, low notch sensitivity. Can effectively absorb vibration energy; Small linear shrinkage rate and volume shrinkage, against deformation and cracking.

6.Taiwan TBI 40mm/32mm ball screw with highly precise classification, the original nut can eliminate the gap between the ball screws. With smooth motion, without clearance and high rigidity, excellent durability, make its have the high transmission speed, little vibration, high precision. Ball screw fixed at both ends, strict technology tests in the process of assembling to ensure its 100% parallel to the guide rail.

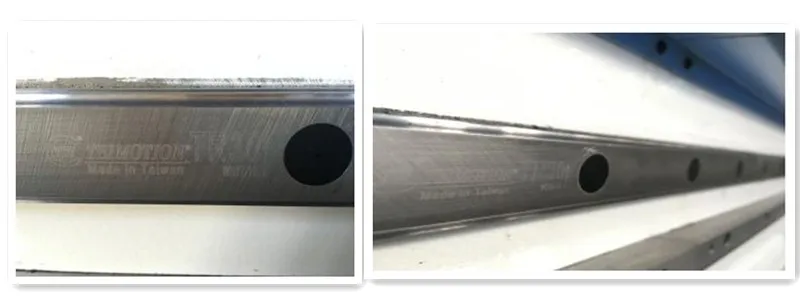

7.Choose the high quality guide rail TBI by Taiwan manufacturers. Which to meet customer required high precision and long service life. running very smoothly with ball retainer, which can eliminate rubbing against between balls, enhance freedom of slide block and the slide rail, and low noise, good quality, self-lubricating, dust free maintenance and excellent high-speed. Within 0.1MM assembly clearance will be automatically compensated by Guide Rail. Guide rail and slide block are strict precision testing before and complete set original before leave.

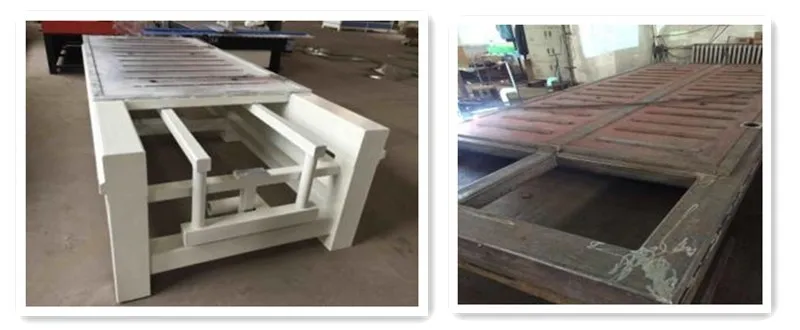

8.Steel heavy structure, steel plate wleding platform, stable and no deformation, strong dsorption capacity.

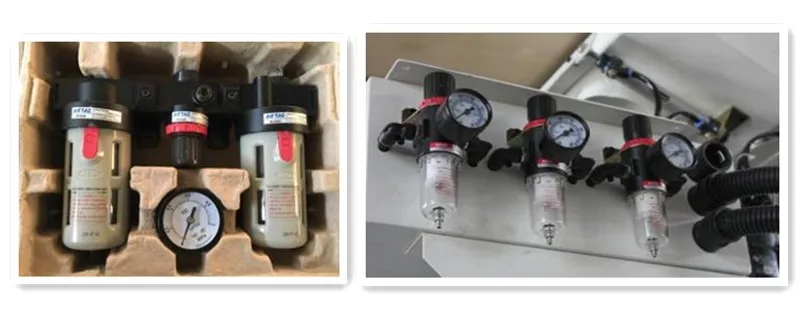

9.Taiwan AIRTAC air handling unit, double filter structure, using centrifugal filtration and replace HDPE mesh filter element to recycle. Separate the air and water very fast and small pressure loss. Liquid oil, water and dust filtration efficiency is as high as 99.99%.

Company Information

Advantage of our company:

1.Experience and professional

2.Talented and passionate work team

3.high tech products

4.perfect after-sale service

5.warranty:1 years

Packaging & Shipping

Delivery:

Within 15 days after the deposit

Packing:

Wooden case or as your requirement

Payment:

15-30days after down payment or LC

Our Services

Guarantee & Aftersales Service:

1.Guarantee for one year

2.24-hour technical support by email or calling

3.User-friendly English manual for machine using and

maintaining

4.Free technician training for large customers.

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.

You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
