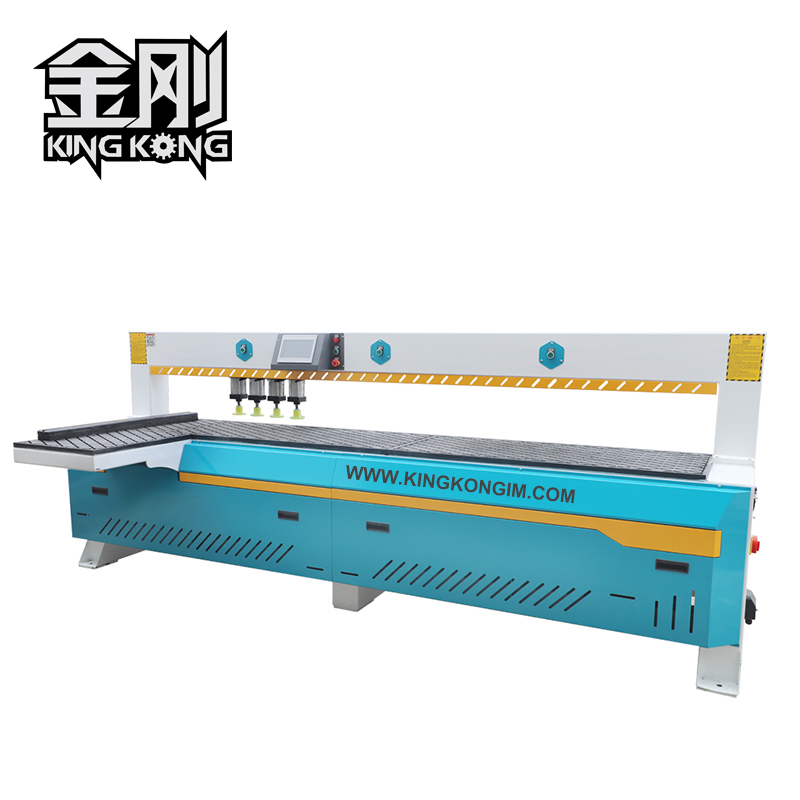

CK1
CK1
- Detail
Technical parameters
Model | CK1 |
Max working width | 2550mm |
Feed in Height | 40mm |
Running speed | 0-40m/min |
Max drilling speed | 20m/min |
Drive mode | Screw Drive, |
Spindle power | CS 3.5KW air cooling spindle |
inveter | BEST inveter |
Valtage | 380V/ 3 phase/50-60HZ |
Control system | PLC control system |
Rail | Taiwan TRV Square linear guide rail |
Rack | High precision rack with 1.5m |
Motor and drive | Servo motor and drive 750w/400w |
Infrared switch | America Bangna sensor |
Machine demension | 3350x1770x1400mm |
Weight | 800kgs |
Brief introduction:
Suitable for varied kinds of horizontal side drilling to panel furniture,including box body of furniture and cabinet.There is no limit to the board width.
Product features
Easy to operate by general workers and replace tradition line driller,get rid of the dependence of technician ,achieve intelligent production.
Working with high speed and accuracy by infrared positioning,saving labor force and time and improving efficiency.
