Model

OCEAN CS Y12

Machining area

1300*2500mm

Z axis travel

200mm

Running speed

0-60000rpm/min

Spindle motor

Chinese 9.0kw ATC air cooling spindle (0~24000rpm)

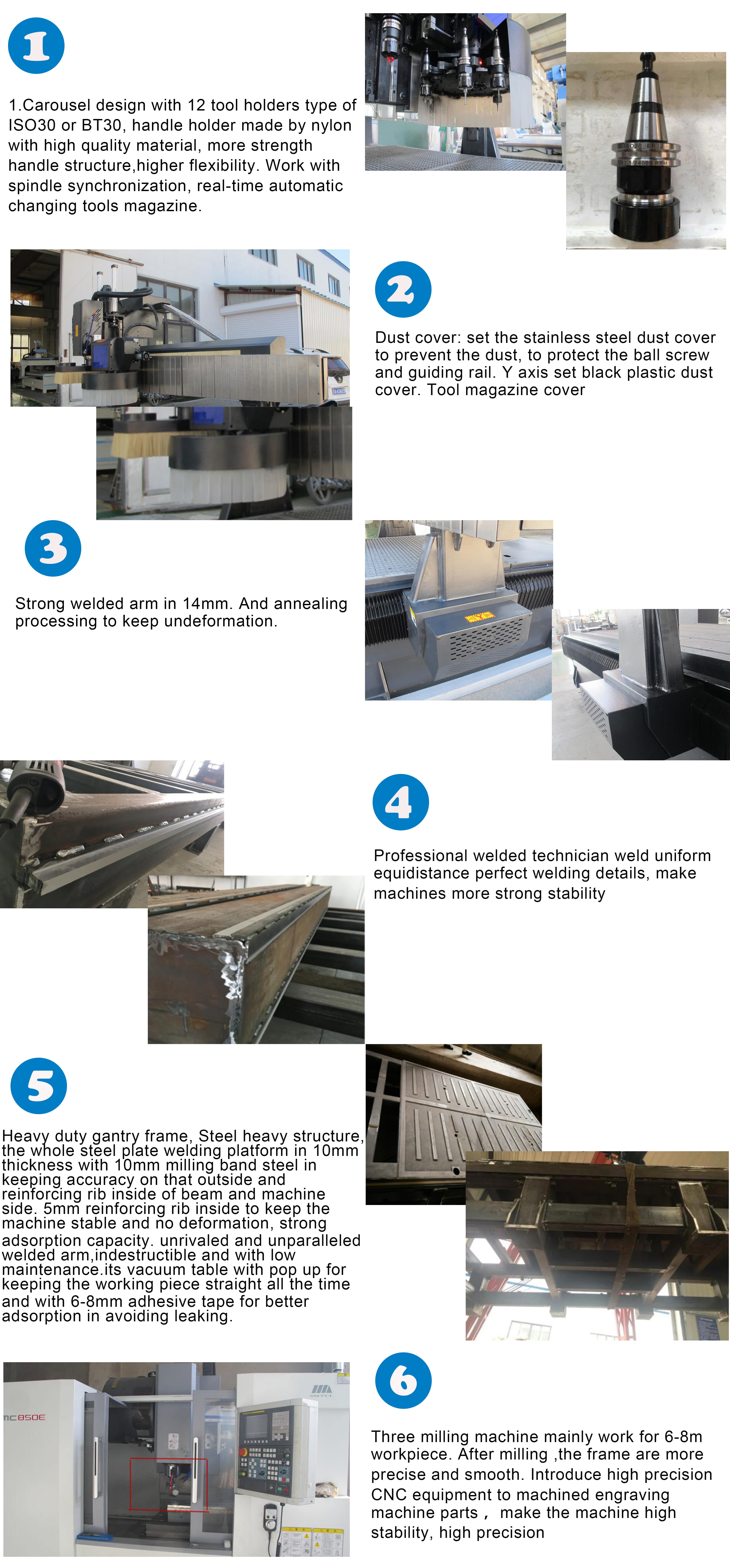

Tool magazine

One Carousel   magazine   with 12 iso30 holders,Tool change automatic

Driving system

Japanese Yaskawa servo dirve and motor

Control system

Taiwan SYNTEC 6MD

Guide rail

Taiwan PMI rail (Y axis=30mm, X/Z axis=25mm)

Reducer

Japanese SHIMPO reducer

Transmission

Taiwan PMI ball-screw for Z axis,Germany HERION helical rack for X,Y axis

Boring head

Vertical spindles up to 9(4X-5Y)6000rmp

Power supply

AC380V/3Phase 50HZ

AC220V/3Phase 60HZ

Inverter

11kw Inverter with good and stable quality

Electric

Schneider electric parts

Table

Vacuum working table with pop-up

Pump

7.5 kw AIR pump

Oil supply

Automatic

Weight

2000kgs

Warranty

one year
